FE 550 TMT Bars Manufacturer in Gujarat

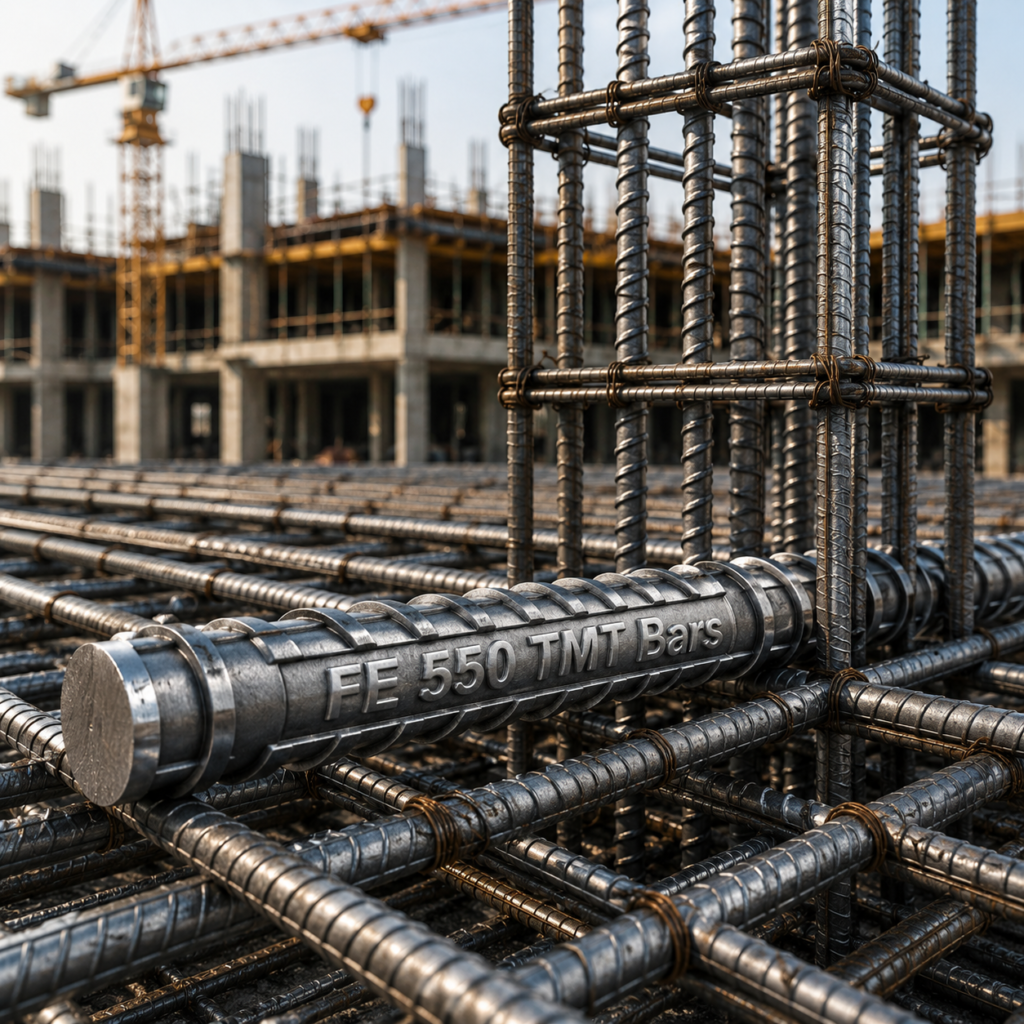

High Strength FE 550 TMT Bars
Bhrata TMX is one of the leading FE 550 TMT Bars manufacturer and supplier in Gujarat, India. Our TMT (Thermo Mechanical Treated) steel bars are developed to provide durability, tensile strength and superior ductile to the construction sector. These TMT bars are produced using advanced technology and an uncompromising quality approach. We are committed to provide precisely tailored, premium quality products to fulfil client requirements.
Importance of FE 550 TMT Bars
When it comes to building structures that last – and last with integrity – the right choice of reinforcement is everything. Fe 550 TMT Bars are the gold standard, leading the pack in strength, flexibility, and overall durability. From the residential to large-scale infrastructure projects – these TMT bars provide the reliability that modern construction demands.
As a trusted Fe 550 TMT Bars manufacturer and supplier in Gujarat, we’re dedicated to delivering top-shelf products that meet the highest industry standards and deliver exceptional performance across all sorts of applications.
What is FE 550 Grade Steel?
Fe 550 grade steel stands for Thermo-Mechanically Treated (TMT) bars with a minimum yield strength of 550 N/mm². Or in simple terms: Fe for Ferrum (that’s iron) and 550 pointing to the bar’s yield strength.
What makes these bars so special? Well, they’re created using a highly advanced process called TMT, where the steel is rapidly quenched then self-tempered to give the bar a seriously tough outer surface and super ductile inner core. This is what sets them apart and makes them ideal for harsh construction environments.
Compared to the lower grades, Fe 550 really stands out with a much higher load-bearing capacity. Builders end up needing to use less steel without sacrificing any strength at all.
Technical Specifications
| ELEMENT | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHARATA TMX 550 | BIS | BHARATA TMX 550 D | BIS | BHARATA TMX 600 | |
| CARBON % | 0.30 | 0.25 | 0.25 | 0.24 | 0.25 | 0.22 |
| SULPHUR % | 0.055 | 0.050 | 0.040 | 0.040 | 0.040 | 0.035 |
| PHOSPHORUS % | 0.050 | 0.040 | 0.040 | 0.035 | 0.040 | 0.035 |
| S + P % | 0.100 | 0.090 | 0.075 | 0.070 | 0.075 | 0.070 |
| GRADE | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHRATA TMX | BIS | BHRATA TMX | BIS | BHRATA TMX | |
| YIELD STRESS | 550 | 570 | 550 | 570 | 600 | 620 |
| TENSILE STRESS – UTS | 585 | 630 | 600 | 630 | 660 | 670 |
| UTS / YS RATIO | 1.06 | 1.01 | 1.08 | 1.06 | 1.06 | 1.08 |
| ELONGATION % | 10 | 14.5 | 14.5 | 16 | 10 | 12 |
| TOTAL ELONGATION AT MAX FORCE % | – | – | 5 | 6 | – | – |
| TEST | FE 550 | FE 550 D | FE 600 | |||
|---|---|---|---|---|---|---|
| BIS | BHRATA TMX 550 | BIS | BHRATA TMX 550 D | BIS | BHRATA TMX 660 | |
| BEND UPTO 20MM | 5 D | 4 D | 4 D | 4 D | 5 D | 5 D |
| BEND OVER 20MM | 6 D | 5 D | 6 D | 5 D | 6 D | 5 D |
| RE-BEND UPTO 10MM | 7 D | 8 D | 6 D | 6 D | 7 D | 7 D |
| RE-BEND OVER 10MM | 8 D | 7 D | 7 D | 7 D | 8 D | 8 D |
| Size MM | Specific Weight | BIS Standard | BHRATA TMX |
|---|---|---|---|
| Diameter | Kg/Mtr. | Kg/Mtr. | Kg/Mtr. |
| 8 MM | 0.395 | 0.367 – 0.423 | 0.368 – 0.393 |
| 10 MM | 0.617 | 0.574 – 0.660 | 0.575 – 0.610 |
| 12 MM | 0.888 | 0.844 – 0.960 | 0.845 – 0.935 |
| 16 MM | 1.580 | 1.501 – 1.659 | 1.502 – 1.570 |
| 20 MM | 2.470 | 2.396 – 2.544 | 2.400 – 2.435 |
| 25 MM | 3.850 | 3.735 – 3.965 | 3.740 – 3.820 |
| 28 MM | 4.850 | 4.687 – 4.975 | 4.700 – 4.810 |
| 32 MM | 6.310 | 6.121 – 6.499 | 6.150 – 6.250 |
| 40 MM | 9.860 | 9.564 – 10.165 | 9.564 – 10.155 |
Features of FE 550 TMT Bars
One of the standout qualities of Fe 550 TMT Bars is that perfect combination of strength and flexibility.
Applications of FE 550 TMT Bars
Fe 550 TMT bars are highly applicable and beneficial in many construction areas.

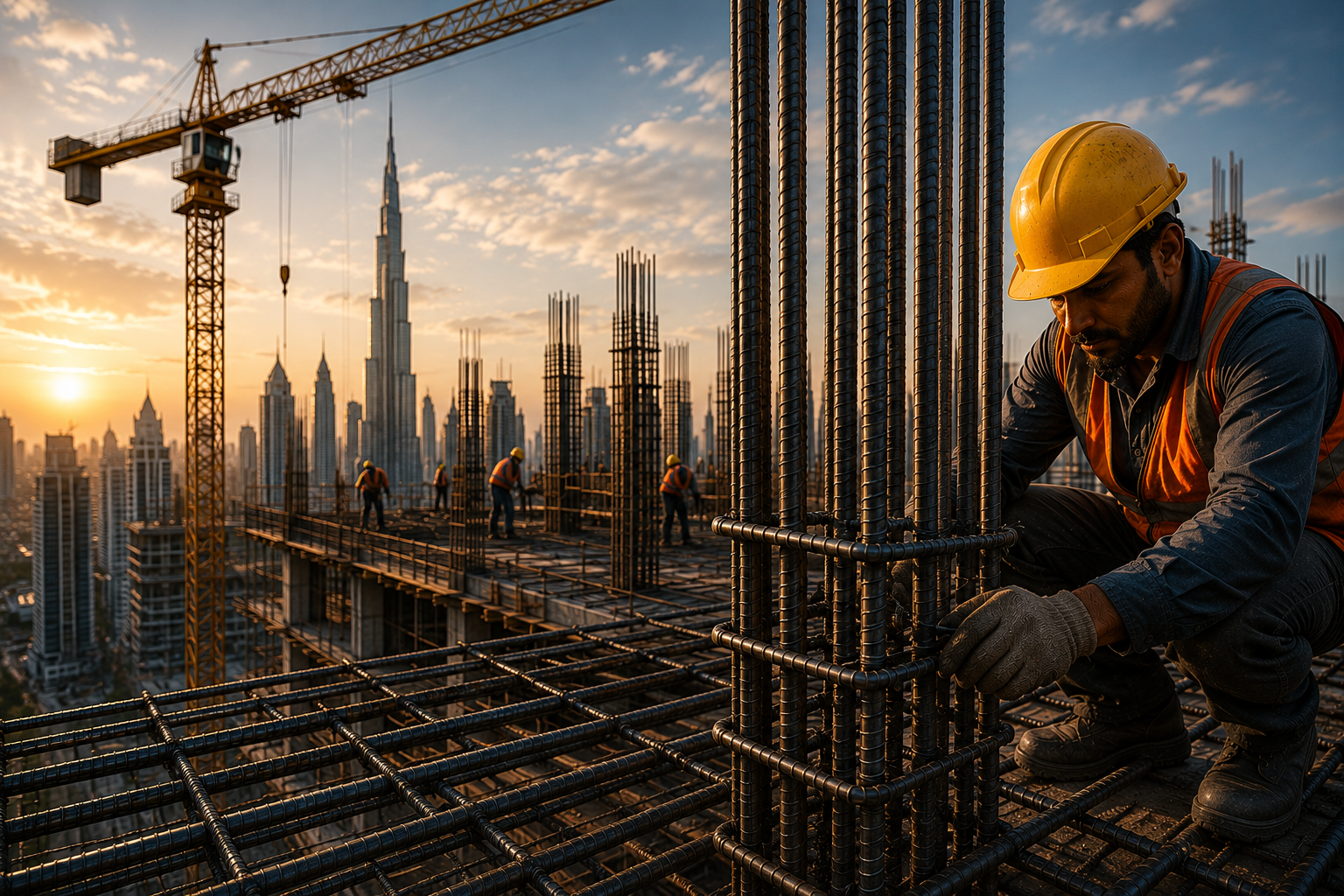

Construction of Residential Houses
These TMT bars are the most suitable to be used in residential construction as they provide strength and security to your homes, villas and apartments.

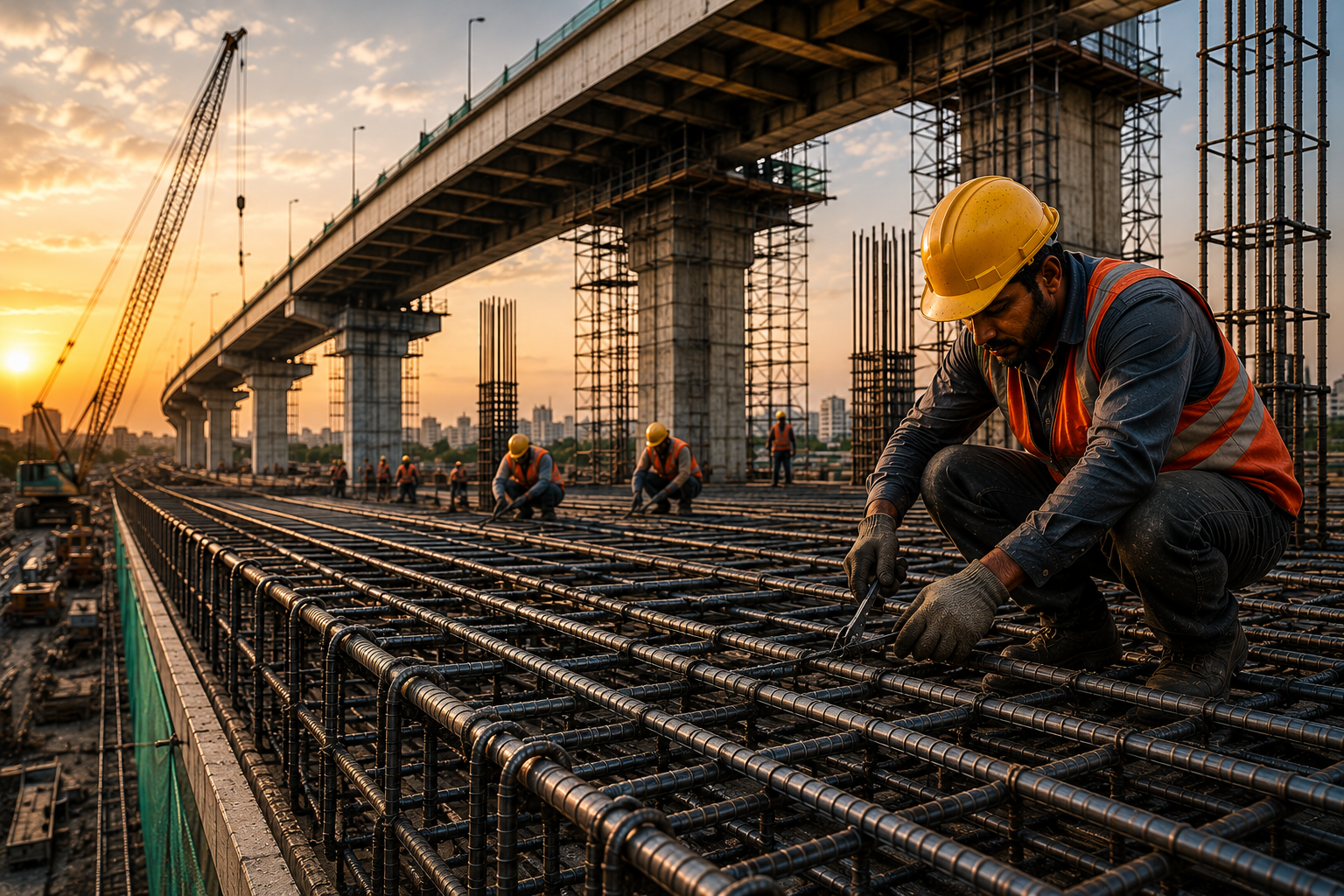

Commercial Buildings
Fe 550 TMT bars ensure strength and security in office buildings, shopping centres and other heavy buildings.

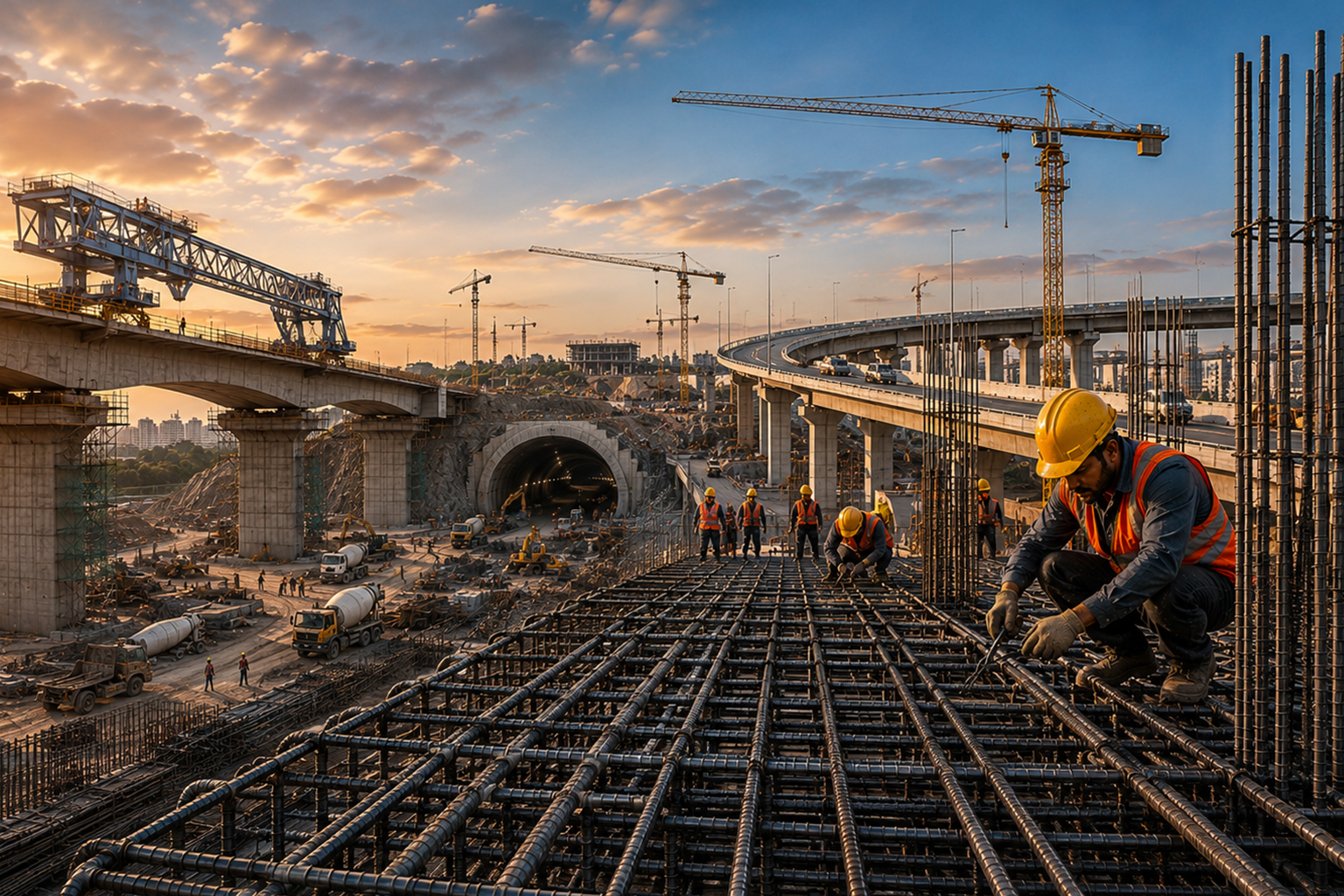

High-Rise Buildings
They offer the perfect quality in case of high rise buildings requiring strength for bearing loads.

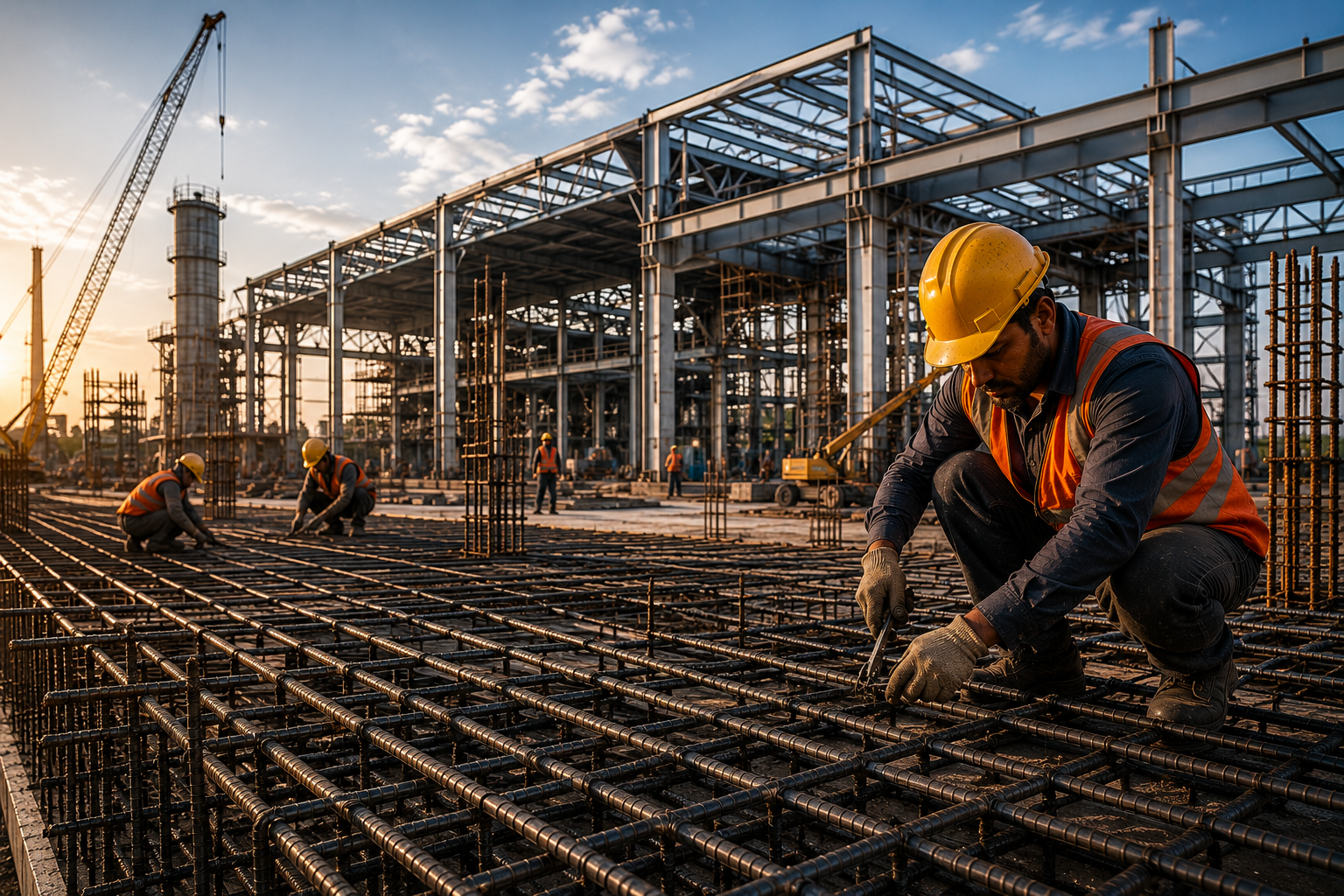

Infrastructure
Fe 550 TMT bars ensure strength and safety in projects including flyovers, bridges and highways.

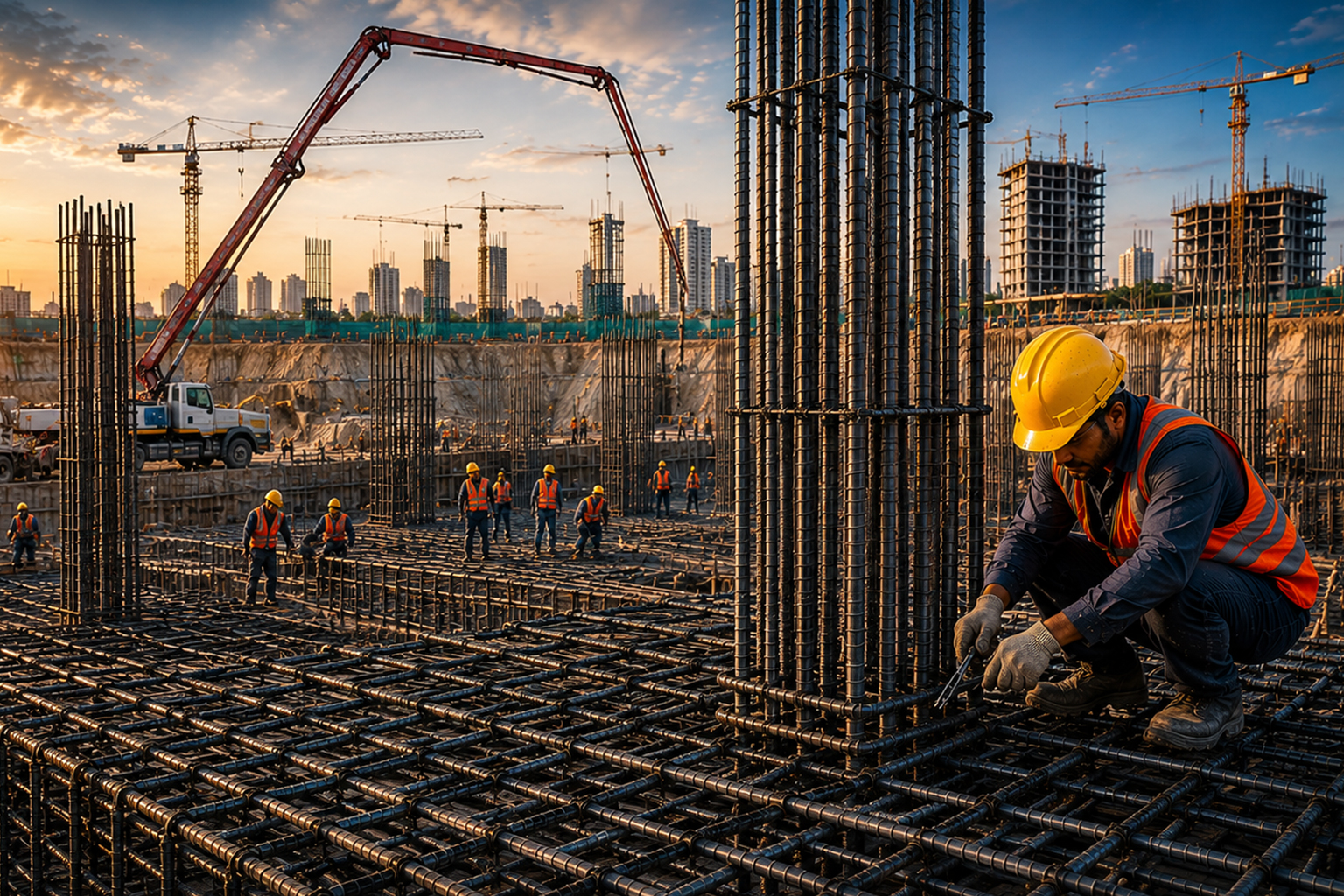

Industrial Buildings
It includes warehouses and factories and all other types of heavy load-bearing constructions.

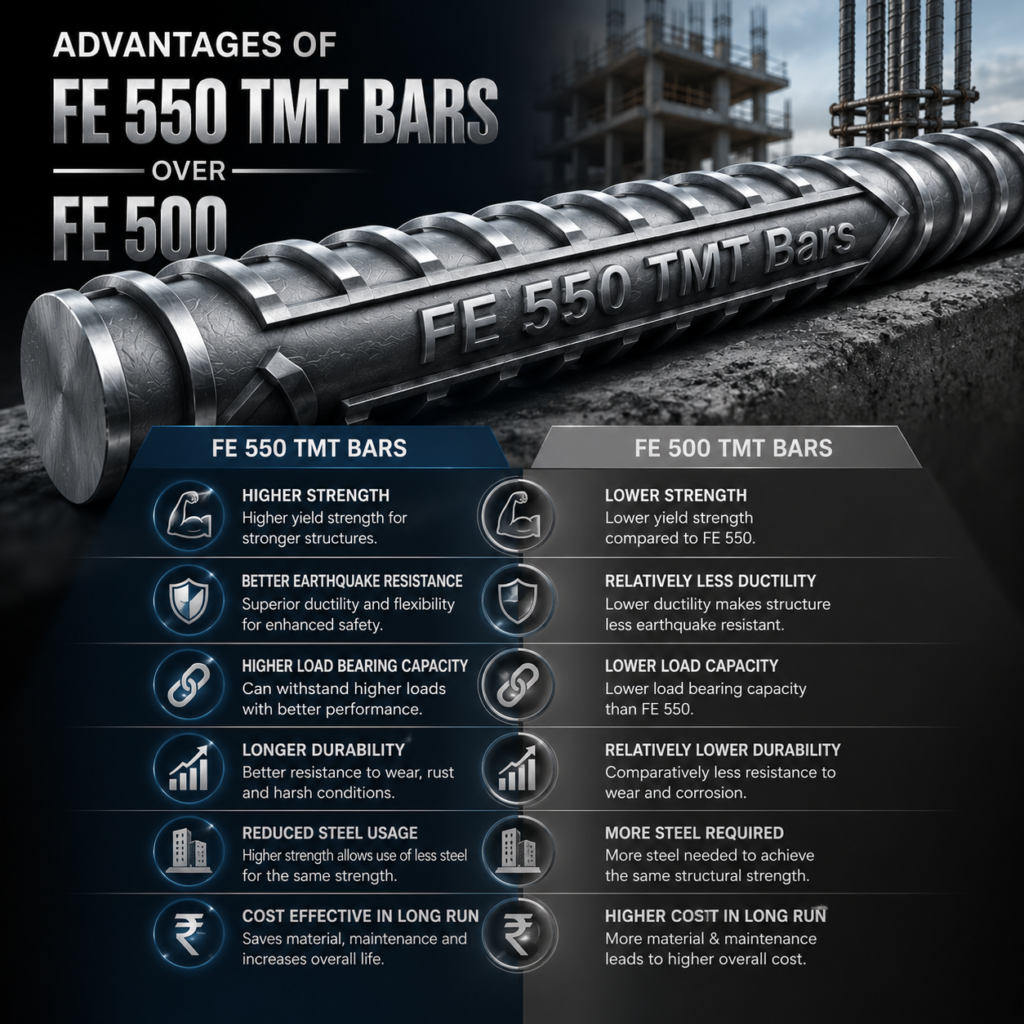

Advantages of FE 550 TMT Bars over Fe 500
Well, if you think Fe 500 TMT bars are good then check this difference with Fe 550 bars. This is what makes them different:

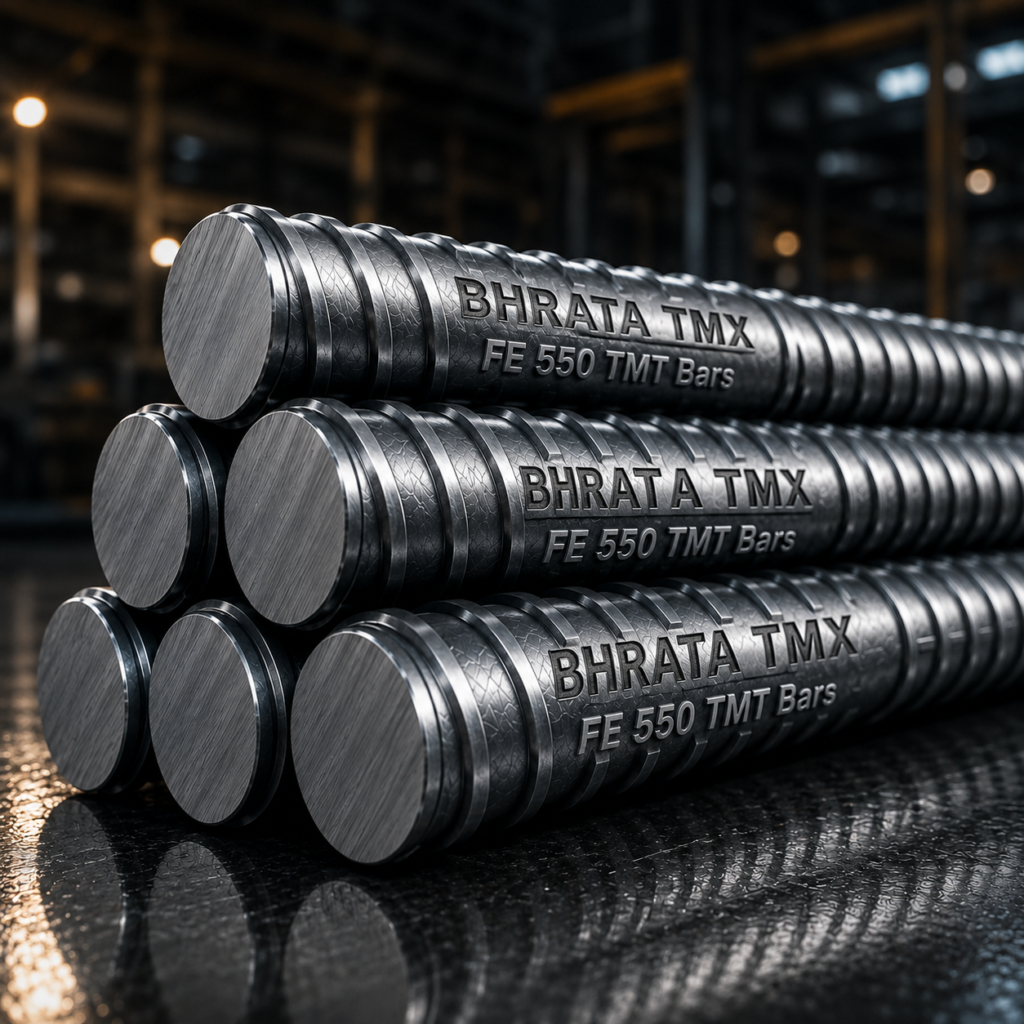

Why Builders Prefer Bhrata FE 550 TMT Bars
Builders & contractors increasingly go for Bhrata FE 550 TMT bars because they are best and reliable.
They are stronger, less steel is required which means overall project costs come right back down.
You might expect them to be harder to bend & shape because of their strength but actually the opposite is true, making construction a faster & more efficient process.
Using the advanced technology to make them, Bhrata FE 550 bars offer consistent quality every time, each time.
Structural engineers prefer these bars because they behave just as they’re supposed to & meet industry standards with ease.
Fe 550 TMT Bars Benefits
- High strength to weight ratio - less heavy & still plenty strong
- Seismic resistance - earthquake proof
- Superb bonding with concrete - it all holds together nicely
- Reduced steel consumption - less waste & streamlined projects
- Durable as they get - long lasting & problem free
- Suitable for any type of construction - residential to industrial
All of these benefits add up to FE 550 TMT bars being smart investments for any construction project, especially when safety & longevity are top priorities.
FAQs about FE 550 TMT Bars
Why are FE 550 TMT bars ideal for residential construction?
What is the strength and flexibility of FE 550 TMT bars?
Are FE 550 TMT bars resistant to corrosion?
Contact FE 550 TMT Bars Manufacturer in Gujarat
Known as the reputed FE 550 TMT Bars manufacturer in Gujarat and Rajasthan, we focus mainly on quality, reliability, and excellence. Made from advanced German technology our offered FE 550 TMT Bars are known for their super strength, durability and ductility. You can get premium quality Bhrata FE 550 TMT bars while searching “Best TMT Bars in Gujarat” as we consistently provide best quality at market leading prices.
